3952 Norman Road Clarkston, Georgia 30021
This is some information which I thought might be interesting
and helpful to people who like to ‘belt’ their engines to
various equipment. A friend of mine recently belted two of his
engines to some hammermills he had acquired. When I asked him how
fast he was turning the mills, he said, ‘I don’t know, I
just found some pulleys that made them sound right.’ That is
one way and he has two nice hammermills. However, I proceeded to
explain how to determine pulley sizes and RPM. With my shaft
tachometer I checked the engine RPM (no center hole in mill shaft)
and computed the mill speed at 1821 RPM using the pulley sizes.
This procedure is explained on the attached sheet.
My interest comes from my experiences around my dad’s
sawmill and shop. There we had numerous occasions to use such
equipment as the shaft tachometer. One application was checking
such things as saw mandril RPM. As you may know, the circle saw has
to be operated at the specified RPM for which it was
‘hammered’ and is rather critical. I remember on one
occasion he had a power unit which ran 1800 RPM with a 14′
drive pulley. It only took him a few minutes with his 4th grade
education and a pencil to figure he needed a 48′ pulley on the
mandril to run the saw 525 RPM. He was well aware of dangers
involved with flywheels, belts, pulleys, and etc., and always kept
people clear of such equipment. The main drive belt was one of his
major concerns besides the circle saw. This belt was 10′ or
12′ wide, probably 50′ or 60′ overall length, and I
would guess weighed in excess of 100 lb. This belt could create a
lot of havoc when it started fraying and coming apart. He probably
never knew its actual travel speed so I thought it might be
interesting to compute.
Pulley circumference = 14′ x 3.1416 = 43.98′
Rim speed (per minute) = 43.98′ x 1800 RPM = 79164′
Feet per minute = 79164’/12′ = 6597′ (App 110′
per second)
Feet per hour = 6597′ x 60 (min.) = 395820′
Miles per hour = 395820’/5280′ = 74.96 MPH
Imagine strips of this belt lashing out at you at 75 MPH. I have
seen it tear down the shade boards the men had constructed over the
mill. It is a lot worse than the little keen peach limbs my dad
used to enhance my education with.
One interesting project we became involved with was converting
an old mule driven cane mill to electric power. Using a 90:1 gear
box and a right angle drive, we selected pulleys to operate the
mill at 9 RPM. This was 3 or 4 RPM faster than the mule but worked
very nicely. I remember it made some fine cane juice.
I am a member of the Georgia Antique Engine Club and have a
couple of engines, a blacksmith forge, wood cook stove,
‘shine’ jug, butter churn, an early 1900s Edison
‘Amberola’ (cylindrical) record player, along with a few
other small items which I carry to the shows. Courteous and
friendly are people you meet at these shows.
FINDING PULLEY SIZES
PULLEY A DIAMETER X RPM = PULLEY B DIAMETER X RPM
WITH THE ABOVE STATEMENT IN MIND, IT BECOMES RELATIVELY SIMPLE
TO COMPUTE DESIRED PULLEY SIZE, OR RPM PROVIDED THE 3 OTHER VALUES
ARE KNOWN.

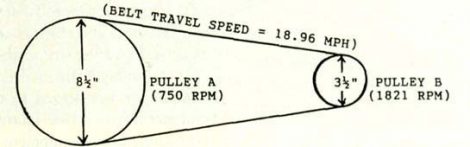

EXAMPLE: THIS WAS AN ANTIQUE ENGINE DRIVING A SMALL HAMMERMILL.
I WAS ABLE TO CHECK ENGINE RPM WITH MY SHAFT TACHOMETER BUT HAD TO
COMPUTE THE HAMMERMILL RPM.
8.5′ x 750 RPM = 6375
6375 / 3.5’= 1821 RPM
SUPPOSE YOU DESIRE TO REDUCE THE HAMMERMILL TO 1600 RPM:
6375 / 1600 RPM = 3.98′ CHANGE PULLEY B TO 4′
6375 / 4′ = 1593.75 RPM
OR: CHANGE PULLEY A TO: 1600 RPM X 3.5′ = 5600
PULLEY A DIAMETER BECOMES: 5600 / 750 RPM = 7.466′
USE 7′ DRIVE PULLEY: 750 RPM X 7.5′ = 5625 / 3.5′ =
1607 RPM.
THIS COULD ALSO BE COMPUTED BY RATIO. DIVIDE THE DIAMETER OF THE
LARGE PULLEY BY THAT OF THE SMALL PULLEY:
8.5′ / 3.5′ = 2.428:1 THEN 750 RPM X 2.428 = 1821 RPM.
BELTED PULLEYS COULD BE RELATED TO PULLEY CIRCUMFERENCE, BELT
TRAVEL SPEED, ECT. HOWEVER, WHEN (3.1416) IS INSERTED INTO A
DIVISION FORMULA, IT BECOMES A VALUE OF 1 AND DOES NOT AFFECT THE
RESULT.
FOR AN INTERESTING PROBLEM, COMPUTE BELT TRAVEL SPEED.
FOR GEARS AND SPROCKETS, USE NUMBER OF TEETH RATHER THAN
DIAMETER. TO FIND RATIO, DIVIDE THE NUMBER OF TEETH ON THE LARGE
GEAR BY THAT OF THE SMALLER GEAR.
EXAMPLE: A 40 TOOTH GEAR MESHED WITH A 16 TOOTH GEAR WOULD HAVE
A RATIO OF: 40 /16 = 2.5:1
