Vintage 1920’s South Bend Catalog
Pages from a 1920’s vintage South Bend catalog give instructions for mounting con-rods in a lathe and boring the bearing.

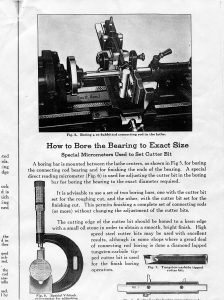

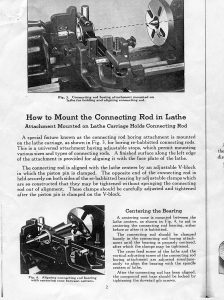

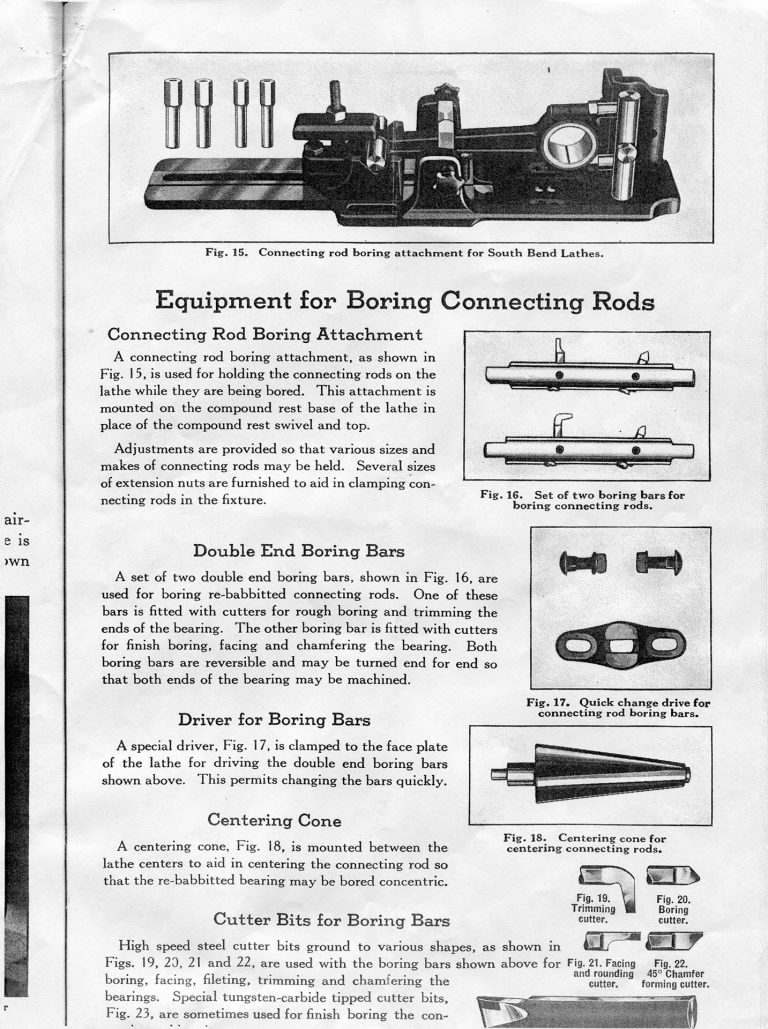

Sent in by a reader, these scans are from a vintage South Bend catalog printed in the 1920s and can be used to make an attachment for a lathe to re-babbitt and restore gas engines. The pages include a list of equipment needed to bore con-rods, instructions for mounting con-rods in a lathe, and boring the bearing to the exact same size. Also, how to use micrometer carriage stops to face ends of a bearing to matching length. Perhaps these will save our readers some time in searching for solutions for a future project.
Thank you for sharing, Richard!
Do you have vintage instructions, catalog pages, or advertisements to share with other enthusiasts? We’d love to see them! Send them to: Gas Engine Magazine, 1503 SW 42nd St Topeka, Ks 66609; or submit high-quality digital images by email: firstname.lastname@example.org
